Understanding Paint Containment and Composite Layers for Smooth Animations

You’re building a slick UI with smooth animations. You add a subtle transform here, a fade there. But then, boom , your animations stutter. Frames drop, interactions feel sluggish, and your user experience tanks.

You tweak your CSS, add will-change: transform, and suddenly things get smoother. But why? What actually happens under the hood when you add that mysterious CSS property? Or when you add contain: paint? How do those tiny CSS hints help the browser decide to offload rendering work to the GPU?

Let me share what I learned digging into paint containment and compositing layers , the quiet heroes behind buttery smooth animations and frustrating jank.

The moment you realize something’s wrong

I was working on a dashboard with complex nested components and animations. Some animations were jittery, especially when scrolling or interacting with other UI parts.

Opening Chrome DevTools, I checked the Performance tab and noticed a lot of layout and paint work every frame. The GPU wasn’t getting a break.

I suspected compositing layers weren’t being created smartly. If each animated element had its own layer, the browser could push rasterization to the GPU, freeing up the CPU and enabling smooth 60fps animations.

But how does the browser decide what gets its own compositing layer?

What is a compositing layer anyway?

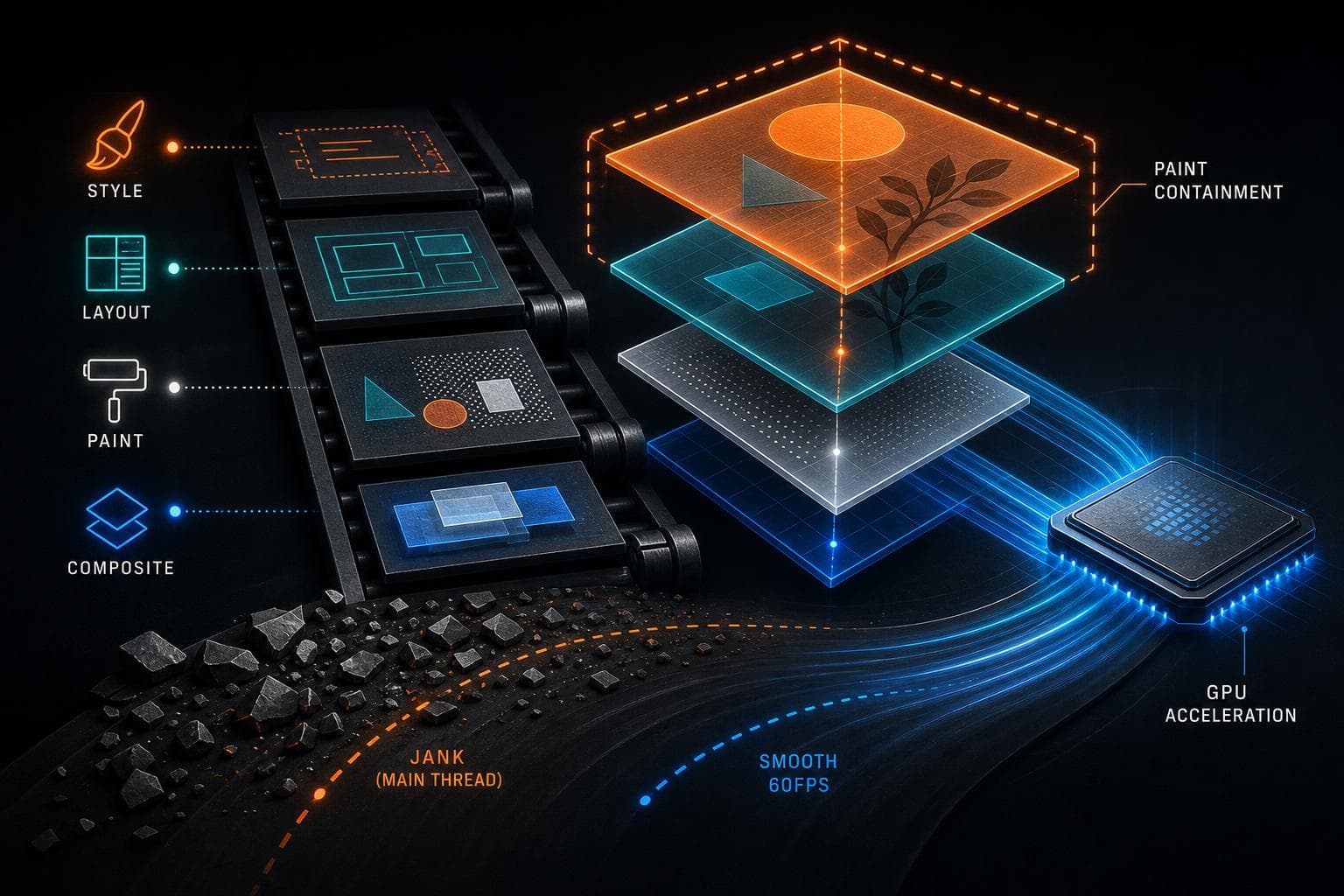

Imagine the browser’s rendering pipeline like an assembly line:

1. Style: The browser figures out what styles apply to each element.
2. Layout: Positions and sizes are computed.
3. Paint: Elements are drawn into bitmaps.
4. Composite: These bitmaps (layers) are combined to produce the final image.

Most elements are painted into a shared bitmap. But some elements get their own bitmap , a compositing layer. This bitmap can be handed off to the GPU to be transformed or animated independently without repainting the entire page.

When a layer is created, animations like transforms or opacity changes on that layer become super cheap , the GPU just moves or blends that bitmap.

Paint containment: telling the browser to isolate painting

You can hint to the browser when an element should get its own compositing layer by using CSS containment. The contain property lets you declare what aspects of rendering are confined to a subtree.

contain: paint means “hey browser, this element and its subtree won’t affect anything outside their bounding box when painting.”

Why does this matter? Because if the browser knows an element is paint-contained, it can safely create a compositing layer for it. Changes inside won’t force repaints outside.

Consider this example:

.card {
  contain: paint;
  will-change: transform;
}

Here, .card is paint-contained and hints it will be transformed. The browser can create a separate layer for .card and push its rendering work to the GPU.

How paint containment creates layers under the hood

Under the hood, the browser’s rendering engine tracks containment properties during the paint phase.

• When it hits an element with contain: paint, it creates a new paint layer.
• This layer is a bitmap snapshot of that subtree.
• Because it’s isolated, the browser knows repainting this layer won’t affect siblings or ancestors.
• The compositor can now handle that layer independently.

This is a big win for animations.

If you animate a transform on that element, the browser only needs to update the layer’s position on screen , no repaint or re-layout.

Without containment, the browser might have to repaint a large part of the page every frame.

The GPU angle: why compositing layers matter

Compositing layers are the boundary between CPU-bound painting and GPU-accelerated compositing.

Your browser’s GPU can move, scale, rotate, or fade whole layers very efficiently.

But creating too many layers is also bad , each layer consumes GPU memory and overhead.

The browser tries to balance:

• Too few layers: More repaint work on CPU, animations jank.
• Too many layers: GPU memory pressure, possible thrashing.

You can influence this balance with contain, will-change, and other CSS properties.

Debugging paint containment and layers in DevTools

If you suspect your animations are slow due to missing layers, here’s how to check:

1. Layers panel in Chrome DevTools:

   • Open DevTools > More Tools > Layers.
   • You’ll see a visual map of compositing layers.
   • Animated elements should have their own layers.

2. Rendering tab > Paint flashing:

   • Enable "Paint flashing" to see what parts of the page repaint during interactions.
   • If large areas repaint during a transform animation, you lack proper containment.

3. Performance tab:

   • Record a profile while animating.
   • Look for "Recalculate Style" and "Paint" tasks.
   • Excessive painting per frame hints at missing layers.

Practical tips to avoid jank

• Use contain: paint or contain: layout paint on animated elements or their parents when possible.
• Add will-change: transform (or whatever property you animate) to hint the browser early.
• Avoid animating properties that force layout or paint (like width, height, top).
• Keep your layer tree manageable: don’t paint-contain everything blindly.
• Test on real devices with DevTools profiling.

Real-world gotchas

• Not all browsers support all containment types equally.
• Overusing will-change can backfire and cause memory bloat.
• Complex shadow DOM or web components might not behave as expected without explicit containment.
• Sometimes, a parent’s overflow or opacity settings affect layer creation unexpectedly.

Why understanding this matters

When you grasp how paint containment and compositing layers work, you can:

• Write CSS that helps the browser optimize rendering.
• Debug tricky animation jank by spotting missing layers.
• Balance GPU memory usage and CPU load.
• Build smoother, more responsive UIs.

Next time your animation stutters, pause and inspect your layers. Your GPU will thank you.
